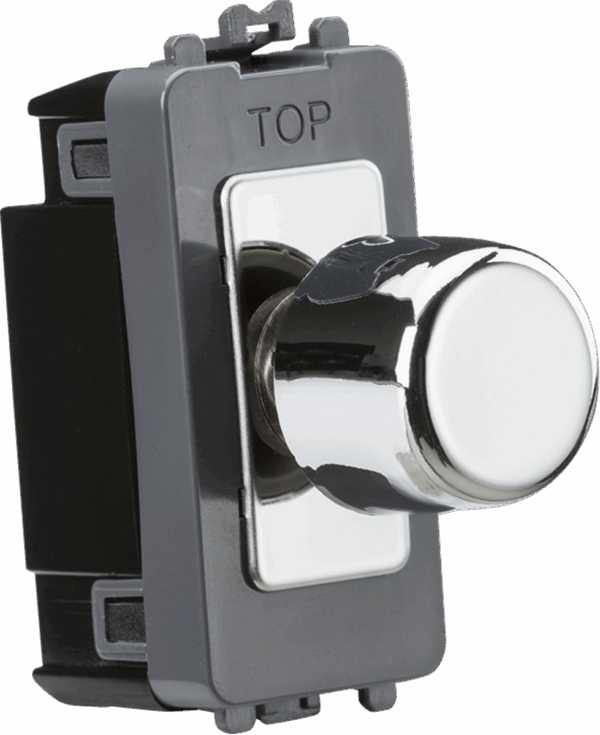

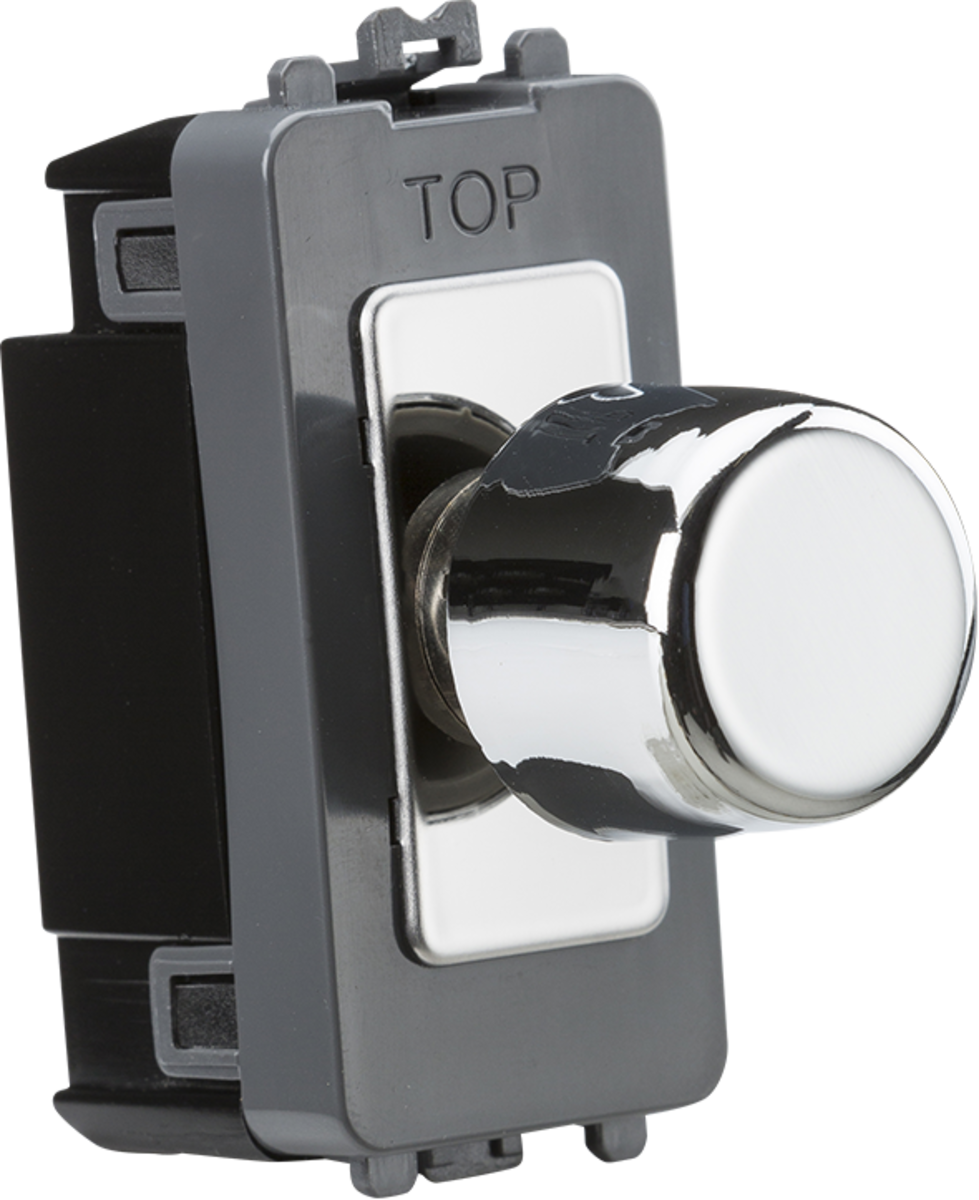

1G 2-way 10-200W (LED 10-100W) trailing edge dimmer module – polished chrome

Product Description

2-way switching, rotary dimming, push On/Off, 10-200W (LED 10-100W) rated. Part of the Knightsbridge Grid system. Module simply clips into position from the front of the mounting frames (sold separately)

GLS / Mains voltage halogen/ LV Halogen with dimmable magnetic transformer/ LV Halogen with electronic transformer: Min. 10W ~ Max.200W

LED dimmable lamp /LED dimmable driver : Min. 10W ~ Max. 100W

*To operate with LED lamps, the lamp or driver/control gear must be compatible i.e. dimmable. This unit is not suitable for non-dimmable products.

Please check with lamp manufacturer for compatibility

NB: WE RECOMMEND A MAXIMUM OF 10-12 LAMPS PER GRID DIMMER TO PREVENT ANY INRUSH CURRENT PROBLEMS
