£11.28 + VAT
Next Day Delivery
Free Returns
One Year Guarantee

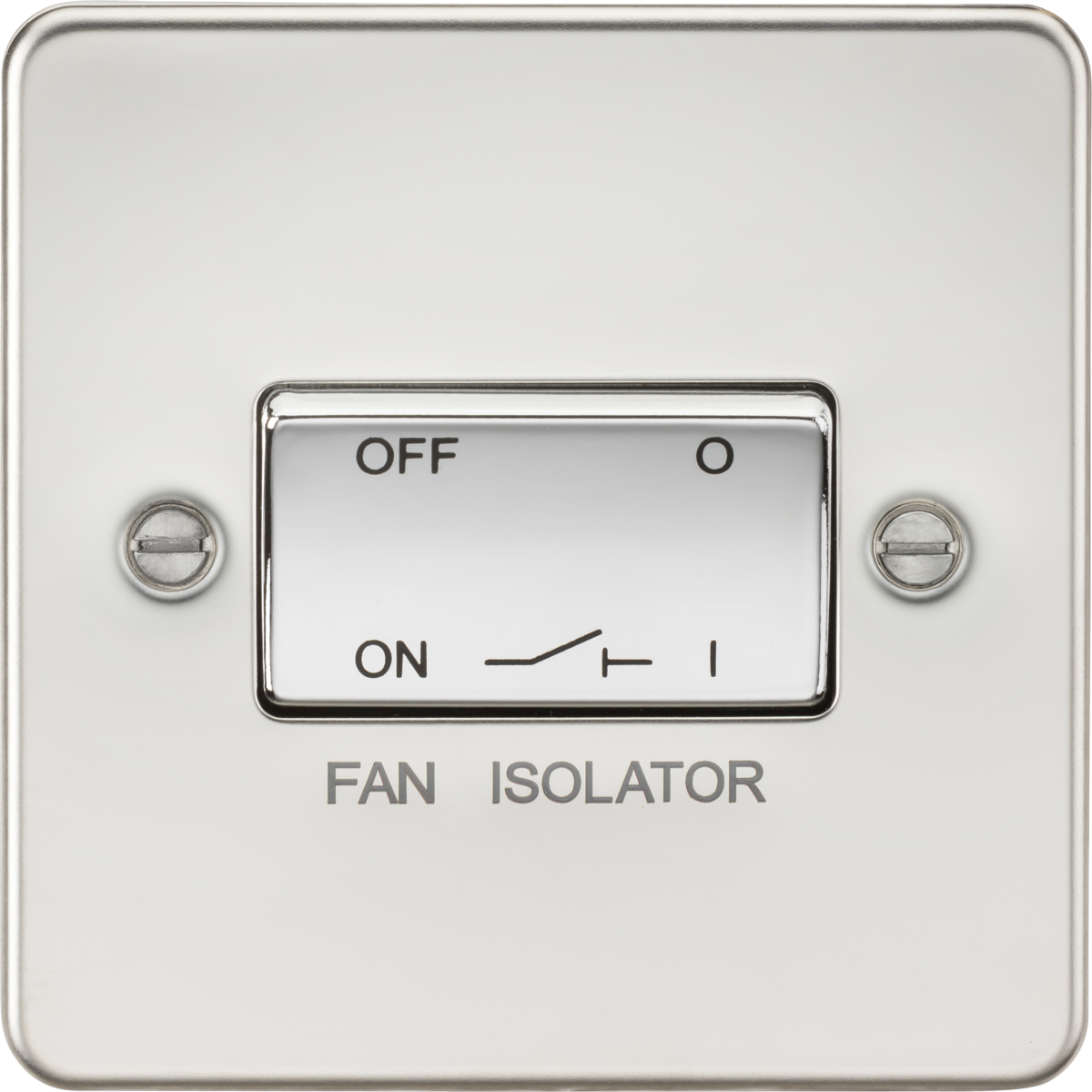

Product Description
Ideal for providing a safe and simple method of isolating fan units in en-suite bathrooms, family bathrooms, utility rooms, store rooms etc. Often the fan unit will be wired into the lighting circuit for convenience and efficiency. With this kind of installation there is often a need to leave the lighting circuit live whilst isolating the fan for maintenance. Flat Plate low profile metal design with matching metal rocker.
– 10AX rated
– Triple Pole
– Ultra low profile design with built in gasket
– Rated conditional short circuit current (Inc) 1500A
– Certified to EN 60669-1, EN 60669-2-4
– Minimum mounting box 16mm
Brand | Knightsbridge |
---|---|
Code | FP1100PC |
Diameter | |
Length | |
Height | 87.5 |
Width | 87.5 |
Depth | |
Projection | 2.5 |
Recessed Depth | |
Minimum Void | |
Cut-Out BOX W/H/D | |
Min. Mounting Depth | 16mm |
Construction 1 | Premium grade steel |
Construction 2 | |
Colour / Finish | Polished Chrome |
Class | |
IP rating | IP20 |
Primary Voltage | 230V 50Hz |
Cable Length | |
Wattage | |
Neon Indicator | |
TV Connection Type | |
SAT Connection Type |
